[flink] flink 실행 중 Caused by: org.apache.flink.configuration.IllegalConfigurationException: Either required fine-grained memory 오류

플링크를 이용한 작업 중 다음과 같은 오류가 발생하는 경우가 있습니다.



org.apache.flink.configuration.IllegalConfigurationException: JobManager memory configuration failed: Either required fine-grained memory (jobmanager.memory.heap.size), or Total Flink Memory size (Key: 'jobmanager.memory.flink.size' , default: null (fallback keys: [])), or Total Process Memory size (Key: 'jobmanager.memory.process.size' , default: null (fallback keys: [])) need to be configured explicitly.
    at org.apache.flink.runtime.jobmanager.JobManagerProcessUtils.processSpecFromConfigWithNewOptionToInterpretLegacyHeap(JobManagerProcessUtils.java:78)
    at org.apache.flink.client.deployment.AbstractContainerizedClusterClientFactory.getClusterSpecification(AbstractContainerizedClusterClientFactory.java:43)
    at org.apache.flink.yarn.cli.FlinkYarnSessionCli.run(FlinkYarnSessionCli.java:602)
    at org.apache.flink.yarn.cli.FlinkYarnSessionCli.lambda$main$4(FlinkYarnSessionCli.java:860)
    at java.security.AccessController.doPrivileged(Native Method)
    at javax.security.auth.Subject.doAs(Subject.java:422)
    at org.apache.hadoop.security.UserGroupInformation.doAs(UserGroupInformation.java:1926)
    at org.apache.flink.runtime.security.contexts.HadoopSecurityContext.runSecured(HadoopSecurityContext.java:41)
    at org.apache.flink.yarn.cli.FlinkYarnSessionCli.main(FlinkYarnSessionCli.java:860)
Caused by: org.apache.flink.configuration.IllegalConfigurationException: Either required fine-grained memory (jobmanager.memory.heap.size), or Total Flink Memory size (Key: 'jobmanager.memory.flink.size' , default: null (fallback keys: [])), or Total Process Memory size (Key: 'jobmanager.memory.process.size' , default: null (fallback keys: [])) need to be configured explicitly.
    at org.apache.flink.runtime.util.config.memory.ProcessMemoryUtils.failBecauseRequiredOptionsNotConfigured(ProcessMemoryUtils.java:129)
    at org.apache.flink.runtime.util.config.memory.ProcessMemoryUtils.memoryProcessSpecFromConfig(ProcessMemoryUtils.java:86)
    at org.apache.flink.runtime.jobmanager.JobManagerProcessUtils.processSpecFromConfig(JobManagerProcessUtils.java:83)
    at org.apache.flink.runtime.jobmanager.JobManagerProcessUtils.processSpecFromConfigWithNewOptionToInterpretLegacyHeap(JobManagerProcessUtils.java:73)
    ... 8 more



이는 메모리 설정이 되어 있지 않아서 발생합니다.

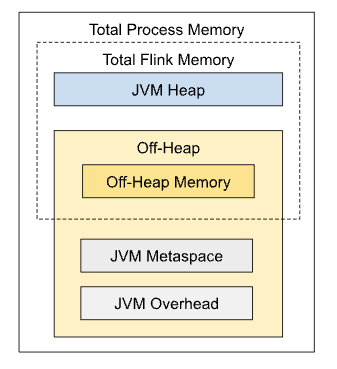

플링크는 잡매니저, 태스크 매니저로 구성되면 각각 process 메모리, flink 메모리를 가지고 있습니다. 이 설정을 flink-conf.yaml 파일에 해주면 됩니다.

https://nightlies.apache.org/flink/flink-docs-master/docs/deployment/memory/mem_setup/

Set up Flink's Process Memory



설정 추가

#==============================================================================
# JobManager
#==============================================================================
jobmanager.memory.process.size: 2048m

#==============================================================================
# TaskManager
#==============================================================================
taskmanager.memory.process.size: 4096m
